Flanged Plastic Caps for BSP and NPT Threads

FCBN

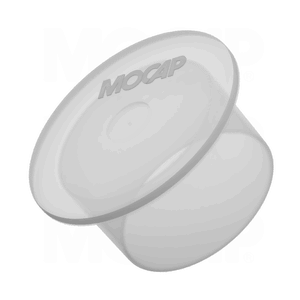

Polyethylene Plastic Flanged Caps for NPT and BSP Threads
Flanged Plastic Caps for BSP and NPT Threads

FCBN–Media

Flanged Caps for BSP and NPT Threads NPT and BSP Fittings Plastic Protective NPT Caps Plastic Protective BSP Caps NPT Plugs Flanged Caps for BSP and NPT Threads Polyethylene Plastic Flanged Caps for NPT and BSP Threads Plastic Flanged Caps for BSP and NPT Threads BSP Threads and NPT Threads - Plastic Flange Caps
  • Material: LDPE (Low Density Polyethylene) (Natural)
  • Flanged for Easy Removal
  • Use as Thread Protector or End Cap

Available in the following varieties:

FCS - Flanged Caps for Straight Threads Flanged Plastic Caps for Standard Straight Threads
FCSL - Long Flanged Caps for Straight Threads Long Flanged Caps for Straight Threads
FCM - Flanged Caps for Metric Threads Flanged Plastic Caps for Metric Threads
FCBN - Flanged Caps for BSP and NPT Threads Flanged Plastic Caps for BSP and NPT Threads

Size Chart Plastic Protective NPT Caps

FCBN Size Chart

Table View
List View
Part # Description To Fit NPT To Fit BSP Inside Diameter
in
mm
 Large I.D.
in
mm
 Flange OD
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
FCB0125 Flanged Plastic Caps for BSP and NPT Threads - FLANGE CAP FOR 0.125" (1/8") BSP THRDS 1/8
0.344
8.7
0.389
9.9
0.650
16.5
0.380
9.7
 5000 1000 100
FCN0125 Plastic Flanged Caps for BSP and NPT Threads - FLANGE CAP FOR 0.125" (1/8") NPT THRDS 1/8
0.383
9.7
0.399
10.1
0.660
16.8
0.383
9.7
 5000 1000 100
FCBN0250 BSP Threads and NPT Threads - Plastic Flange Caps - FLANGE CAP FOR 0.250" (1/4") BSP-NPT THRDS 1/4 1/4
0.510
12.9
0.533
13.5
0.810
20.6
0.530
13.5
 5000 1000 100
FCB0375 Plastic Flanged Caps for BSP and NPT Threads - FLANGE CAP FOR 0.375" (3/8") BSP THRDS 3/8
0.616
15.6
0.661
16.8
0.930
23.6
0.530
13.5
 5000 1000 100
FCN0375 Polyethylene Plastic Flanged Caps for NPT and BSP Threads - FLANGE CAP FOR 0.375" (3/8") NPT THRDS 3/8
0.644
16.4
0.669
17.0
0.940
23.9
0.530
13.5
 5000 1000 100
FCBN0500 Flanged Caps for BSP and NPT Threads - FLANGE CAP FOR 0.500" (1/2") BSP-NPT THRDS 1/2 1/2
0.800
20.3
0.833
21.2
1.090
27.7
0.720
18.3
 3000 600 60
FCBN0750 Plastic Protective BSP Caps NPT Plugs - FLANGE CAP FOR 0.750" (3/4") BSP-NPT THRDS 3/4 3/4
1.011
25.7
1.045
26.5
1.310
33.3
0.750
19.1
 2000 400 40
FCBN1000 Plastic Protective NPT Caps - FLANGE CAP FOR 1.000" (1") BSP-NPT THRDS 1 1
1.267
32.2
1.310
33.3
1.560
39.6
0.930
23.6
 1000 200 20
FCBN1250 NPT and BSP Fittings - FLANGE CAP FOR 1.250" (1-1/4") BSP-NPT THRDS 1-1/4 1-1/4
1.611
40.9
1.655
42.0
1.940
49.3
0.970
24.6
 800 160 16
FCB1500 Flanged Plastic Caps for BSP and NPT Threads - FLANGE CAP FOR 1.500" (1-1/2") BSP THRDS 1-1/2
1.839
46.7
1.884
47.9
2.150
54.6
0.970
24.6
 600 120 12
FCBN1500 Plastic Flanged Caps for BSP and NPT Threads - FLANGE CAP FOR 1.500" (1-1/2") BSP-NPT THRDS 1-1/2 1-1/2
1.848
46.9
1.893
48.1
2.160
54.9
0.970
24.6
 600 120 12
FCB2000 BSP Threads and NPT Threads - Plastic Flange Caps - FLANGE CAP FOR 2.000" (2") BSP THRDS 2
2.305
58.5
2.350
59.7
2.610
66.3
1.030
26.2
 500 100 10
FCN2000 Plastic Flanged Caps for BSP and NPT Threads - FLANGE CAP FOR 2.000" (2") NPT THRDS 2
2.323
59.0
2.370
60.2
2.620
66.5
1.030
26.2
 500 100 10
Part # Description To Fit NPT To Fit BSP Inside Diameter
in
mm
 Large I.D.
in
mm
 Flange OD
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Flanged Plastic Caps for BSP and NPT Threads - Information

MOCAP FCBN Series of flanged polyethylene plastic caps are designed to protect BSP and NPT threads with and without o-rings.
The natural color of the flanged plastic caps allows visual verification of the threads or o-ring. Flanged caps for BSP and NPT threads are easy to attach or remove by hand or automated equipment.

FCBN Series flanged plastic caps in sizes to fit BSP and NPT thread sizes 1/8 through 2.

Additional series available to fit Standard Straight Threads and Metric Threads.

  • Use as Thread Protector or End Cap
  • Sizes Also Available For Standard Straight and Metric Threads and Fittings
  • Flanged for Easy Removal



MOCAP stocks Flanged Plastic Caps for BSP and NPT Threads in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
