General Purpose Plugs for Type L and M Tubing

GKP


Polyethylene Plugs for Type L and M Tubing
General Purpose Plugs for Type L and M Tubing

GKP–Media

General Purpose Plugs for Type L and M Tubing General Purpose Type L and M Plugs General Purpose Plugs for Type L and M Tubing General Purpose Fittings for Type L and M Tubing Type L and M Tubing Plastic Fittings Polyethylene Plugs for Type L and M Tubing Type L and M Tubing Plastic Stopper Plastic Plug Caps - Type L Tubing and Type M Tubing
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Designed for Flange to Fit Flush with Outside Wall of Tube

Size Chart General Purpose Plugs for Type L and M Tubing

GKP Size Chart

Table View
List View
Part # Description To Fit Tube Size Small O.D.
in
mm
 Large O.D.
in
mm
 Flange OD
in
mm
 Flange Thickness
in
mm
 Length
in
mm
 Inside Diameter
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
GKP0188 General Purpose Plugs for Type L and M Tubing - GEN PURPOSE PLUG FOR 3/16 TYPE K J-528 TUBING 3/16
0.105
2.7
0.138
3.5
0.190
4.8
0.190
4.8
0.310
7.9
0.042
1.1
 10000 2000 200
GKP0250 Plastic Cork for Type L and M Tubing - GEN PURPOSE PLUG FOR 1/4 TYPE K J-528 TUBING 1/4
0.160
4.1
0.202
5.1
0.240
6.1
0.140
3.6
0.380
9.7
0.097
2.5
 5000 1000 100
GKP0313 Plastic Plug Caps - Type L Tubing and Type M Tubing - GEN PURPOSE PLUG FOR 5/16 TYPE K J-528 TUBING 5/16
0.227
5.8
0.272
6.9
0.310
7.9
0.140
3.6
0.380
9.7
0.164
4.2
 5000 1000 100
GKP0375 Type L and M Tubing Plastic Stopper - GEN PURPOSE PLUG FOR 3/8 TYPE K J-528 TUBING 3/8
0.290
7.4
0.340
8.6
0.370
9.4
0.160
4.1
0.380
9.7
0.227
5.8
 5000 1000 100
GKP0500 Polyethylene Plugs for Type L and M Tubing - GEN PURPOSE PLUG FOR 1/2 TYPE K J-528 TUBING 1/2
0.411
10.4
0.466
11.8
0.500
12.7
0.160
4.1
0.380
9.7
0.348
8.8
 5000 1000 100
GKP0625 Type L and M Tubing Plastic Fittings - GEN PURPOSE PLUG FOR 5/8 TYPE K J-528 TUBING 5/8
0.530
13.5
0.587
14.9
0.620
15.7
0.190
4.8
0.560
14.2
0.467
11.9
 5000 1000 100
GKP0750 General Purpose Fittings for Type L and M Tubing - GEN PURPOSE PLUG FOR 3/4 TYPE K J-528 TUBING 3/4
0.650
16.5
0.712
18.1
0.750
19.1
0.190
4.8
0.560
14.2
0.587
14.9
 5000 1000 100
Part # Description To Fit Tube Size Small O.D.
in
mm
 Large O.D.
in
mm
 Flange OD
in
mm
 Flange Thickness
in
mm
 Length
in
mm
 Inside Diameter
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



General Purpose Plugs for Type L and M Tubing - Information

MOCAP General Purpose Plugs for Type L and M Tubing are designed for applications where the outside diameter of the plug should not exceed the outside diameter of the tubing. The plug flange fits flush with the outside wall of the tubing.
Type L and Type M copper tubing are commonly used in water supply and pressure applications, and our plugs can be used to protect this tubing from contaminants during production, storage, and shipping.

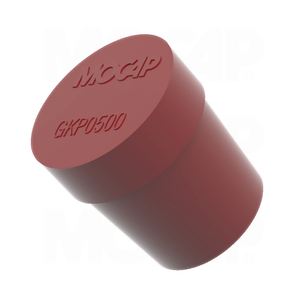

Our GKP Series Plugs are molded in Red polyethylene plastic and sized to fit Type L & M Tubing from 3/16 thru 3/4.

MOCAP stocks General Purpose Plugs for Type L and M Tubing in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
