Sealing Plugs for Unified/Straight Threads

SPU


UNF Sealing Plugs with Slotted Hex Head
Sealing Plugs for Unified/Straight Threads

SPU – Media

Sealing Plugs for Unified/Straight Threads Plastic Sealing Bolt for UNF Threads UNF Sealing Plug Caps (Polypropylene or Nylon) Plastic Sealing Plugs for UNF Threads UNF Sealing Plugs with Slotted Hex Head Threaded Sealing Plugs Plastic Sealing Plugs Sealing Plug 435 Sealing Plug for Straight Threads

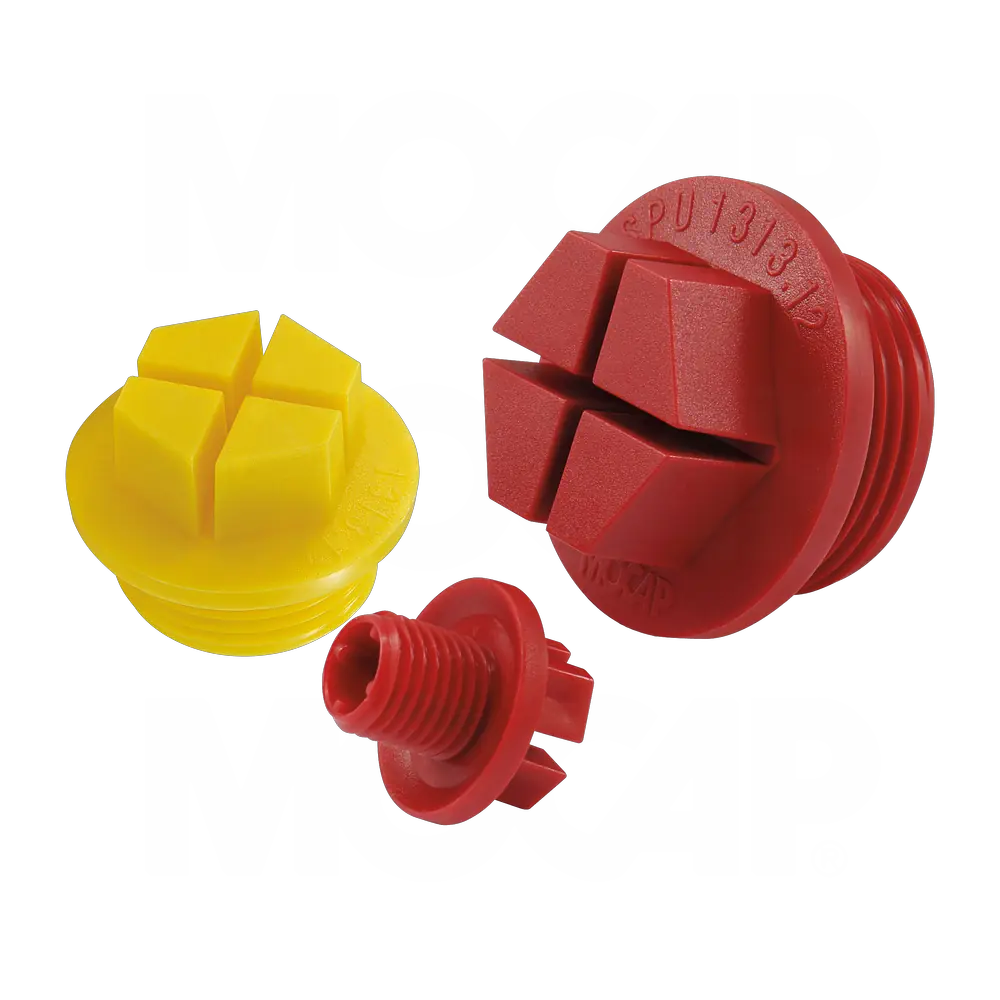

  • Material: Polypropylene (RED), Nylon (Yellow)
  • Designed with Five Complete Threads Plus an Integrated Sealing Lip for a Tight Fit
  • Also Available with a Factory Fit Neoprene O-Ring when a Secure Seal is Required
Select your item

Size Chart Sealing Plug 435

PrintPrint

SPU Size Chart

Part # Description O-Ring To Fit STD Thread Suggested Applications Flange OD
in
mm
Stem Height
in
mm
Length
in
mm
Color Box/Mini/Micro
QTY
Buy Online
More info
SPU0437-20RD4 Sealing Plugs for Unified/Straight Threads - SEALING PLUG FOR 7/16-20 PORT, PP RED 7/16-20 RED
0.820
20.8
0.350
8.9
0.430
10.9
RED 5000 1000 100
SPU0437-20RD4NO Plastic Sealing Bolt for UNF Threads - SEALING PLUG FOR 7/16-20 PORT, PP RED W/ORING 7/16-20 RED
0.820
20.8
0.350
8.9
0.430
10.9
RED 5000 1000 100
SPU0500-20RD4 UNF Sealing Plug Caps (Polypropylene or Nylon) - SEALING PLUG FOR 1/2-20 PORT, PP RED 1/2-20 RED
0.900
22.9
0.390
9.9
0.430
10.9
RED 3000 600 60
SPU0500-20RD4NO Plastic Sealing Plugs for UNF Threads - SEALING PLUG FOR 1/2-20 PORT, PP RED W/ ORING 1/2-20 RED
0.900
22.9
0.390
9.9
0.430
10.9
RED 3000 600 60
SPU0562-18RD4 UNF Sealing Plugs with Slotted Hex Head - SEALING PLUG FOR 9/16-18 PORT, PP RED 9/16-18 RED
0.980
24.9
0.390
9.9
0.430
10.9
RED 3000 600 60
SPU0562-18RD4NO Threaded Sealing Plugs - SEALING PLUG FOR 9/16-18 PORT, PP RED W/ ORING 9/16-18 RED
0.980
24.9
0.390
9.9
0.430
10.9
RED 3000 600 60
SPU0625-18RD4 Plastic Sealing Plugs - SEALING PLUG FOR 5/8-18 PORT, PP RED 5/8-18 RED
0.980
24.9
0.470
11.9
0.470
11.9
RED 3000 600 60
SPU0625-18RD4NO Sealing Plug 435 - SEALING PLUG FOR 5/8-18 PORT, PP RED W/ ORING 5/8-18 RED
0.980
24.9
0.470
11.9
0.470
11.9
RED 3000 600 60
SPU0750-16RD4 Sealing Plug for Straight Threads - SEALING PLUG FOR 3/4-16 PORT, PP RED 3/4-16 RED
1.020
25.9
0.510
13.0
0.390
9.9
RED 3000 600 60
SPU0750-16RD4NO Sealing Plugs for Unified/Straight Threads - SEALING PLUG FOR 3/4-16 PORT, PP RED W/ ORING 3/4-16 RED
1.020
25.9
0.510
13.0
0.390
9.9
RED 3000 600 60
SPU0875-14RD4 Plastic Sealing Bolt for UNF Threads - SEALING PLUG FOR 7/8-14 PORT, PP RED 7/8-14 RED
1.330
33.8
0.470
11.9
0.550
14.0
RED 3000 600 60
SPU0875-14RD4NO UNF Sealing Plug Caps (Polypropylene or Nylon) - SEALING PLUG FOR 7/8-14 PORT, PP RED W/ ORING 7/8-14 RED
1.330
33.8
0.470
11.9
0.550
14.0
RED 3000 600 60
SPU1062-12RD4 Plastic Sealing Plugs for UNF Threads - SEALING PLUG FOR 1-1/16-12 PORT, PP RED 1 1/16-12 RED
1.610
40.9
0.470
11.9
0.550
14.0
RED 1000 200 20
SPU1062-12RD4NO UNF Sealing Plugs with Slotted Hex Head - SEALING PLUG FOR 1-1/16-12 PORT, PP RED W/ ORING 1 1/16-12 RED
1.610
40.9
0.470
11.9
0.550
14.0
RED 1000 200 20
SPU1313-12RD4 Threaded Sealing Plugs - SEALING PLUG FOR 1-5/16-12 PORT, PP RED 1 5/16-12 RED
1.650
41.9
0.590
15.0
0.590
15.0
RED 1000 200 20
SPU1313-12RD4NO Plastic Sealing Plugs - SEALING PLUG FOR 1-5/16-12 PORT, PP RED W/ ORING 1 5/16-12 RED
1.650
41.9
0.590
15.0
0.590
15.0
RED 1000 200 20
SPU1625-12RD4 Sealing Plug 435 - SEALING PLUG FOR 1-5/8-12 PORT, PP RED 1 5/8-12 RED
2.280
57.9
0.590
15.0
0.670
17.0
RED 500 100 10
SPU1625-12RD4NO Sealing Plug for Straight Threads - SEALING PLUG FOR 1-5/8-12 PORT, PP RED W/ ORING 1 5/8-12 RED
2.280
57.9
0.590
15.0
0.670
17.0
RED 500 100 10
SPU0437-20YW5 Sealing Plugs for Unified/Straight Threads - SEALING PLUG FOR 7/16-20 PORT, NYLON YELLOW 7/16-20 YELLOW
0.820
20.8
0.350
8.9
0.430
10.9
YELLOW 5000 1000 100
SPU0437-20YW5NO Plastic Sealing Bolt for UNF Threads - SEALING PLUG FOR 7/16-20 PORT, NYLON YELLOW W/ ORING 7/16-20 YELLOW
0.820
20.8
0.350
8.9
0.430
10.9
YELLOW 5000 1000 100
SPU0500-20YW5 UNF Sealing Plug Caps (Polypropylene or Nylon) - SEALING PLUG FOR 1/2-20 PORT, NYLON YELLOW 1/2-20 YELLOW
0.900
22.9
0.390
9.9
0.430
10.9
YELLOW 3000 600 60
SPU0500-20YW5NO Plastic Sealing Plugs for UNF Threads - SEALING PLUG FOR 1/2-20 PORT, NYLON YELLOW W/ ORING 1/2-20 YELLOW
0.900
22.9
0.390
9.9
0.430
10.9
YELLOW 3000 600 60
SPU0562-18YW5 UNF Sealing Plugs with Slotted Hex Head - SEALING PLUG FOR 9/16-18 PORT, NYLON YELLOW 9/16-18 YELLOW
0.980
24.9
0.390
9.9
0.430
10.9
YELLOW 3000 600 60
SPU0562-18YW5NO Threaded Sealing Plugs - SEALING PLUG FOR 9/16-18 PORT, NYLON YELLOW W/ ORING 9/16-18 YELLOW
0.980
24.9
0.390
9.9
0.430
10.9
YELLOW 3000 600 60
SPU0625-18YW5 Plastic Sealing Plugs - SEALING PLUG FOR 5/8-18 PORT, NYLON YELLOW 5/8-18 YELLOW
0.980
24.9
0.470
11.9
0.470
11.9
YELLOW 3000 600 60
SPU0625-18YW5NO Sealing Plug 435 - SEALING PLUG FOR 5/8-18 PORT, NYLON YELLOW W/ ORING 5/8-18 YELLOW
0.980
24.9
0.470
11.9
0.470
11.9
YELLOW 3000 600 60
SPU0750-16YW5 Sealing Plug for Straight Threads - SEALING PLUG FOR 3/4-16 PORT, NYLON YELLOW 3/4-16 YELLOW
1.020
25.9
0.510
13.0
0.390
9.9
YELLOW 3000 600 60
SPU0750-16YW5NO Sealing Plugs for Unified/Straight Threads - SEALING PLUG FOR 3/4-16 PORT, NYLON YELLOW W/ ORING 3/4-16 YELLOW
1.020
25.9
0.510
13.0
0.390
9.9
YELLOW 3000 600 60
SPU0875-14YW5 Plastic Sealing Bolt for UNF Threads - SEALING PLUG FOR 7/8-14 PORT, NYLON YELLOW 7/8-14 YELLOW
1.330
33.8
0.470
11.9
0.550
14.0
YELLOW 3000 600 60
SPU0875-14YW5NO UNF Sealing Plug Caps (Polypropylene or Nylon) - SEALING PLUG FOR 7/8-14 PORT, NYLON YELLOW W/ ORING 7/8-14 YELLOW
1.330
33.8
0.470
11.9
0.550
14.0
YELLOW 3000 600 60
SPU1062-12YW5 Plastic Sealing Plugs for UNF Threads - SEALING PLUG FOR 1-1/16-12 PORT, NYLON YELLOW 1 1/16-12 YELLOW
1.610
40.9
0.470
11.9
0.550
14.0
YELLOW 1000 200 20
SPU1062-12YW5NO UNF Sealing Plugs with Slotted Hex Head - SEALING PLUG FOR 1-1/16-12 PORT, NYLON YELLOW W/ ORING 1 1/16-12 YELLOW
1.610
40.9
0.470
11.9
0.550
14.0
YELLOW 1000 200 20
SPU1313-12YW5 Threaded Sealing Plugs - SEALING PLUG FOR 1-5/16-12 PORT, NYLON YELLOW 1 5/16-12 YELLOW
1.650
41.9
0.590
15.0
0.590
15.0
YELLOW 1000 200 20
SPU1313-12YW5NO Plastic Sealing Plugs - SEALING PLUG FOR 1-5/16-12 PORT, NYLON YELLOW W/ ORING 1 5/16-12 YELLOW
1.650
41.9
0.590
15.0
0.590
15.0
YELLOW 1000 200 20
SPU1625-12YW5 Sealing Plug 435 - SEALING PLUG FOR 1-5/8-12 PORT, NYLON YELLOW 1 5/8-12 YELLOW
2.280
57.9
0.590
15.0
0.670
17.0
YELLOW 500 100 10
SPU1625-12YW5NO Sealing Plug for Straight Threads - SEALING PLUG FOR 1-5/8-12 PORT, NYLON YELLOW W/ ORING 1 5/8-12 YELLOW
2.280
57.9
0.590
15.0
0.670
17.0
YELLOW 500 100 10
Part # Description O-Ring To Fit STD Thread Suggested Applications Flange OD
in
mm
Stem Height
in
mm
Length
in
mm
Color Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Sealing Plugs for Unified/Straight Threads - Information

MOCAP Sealing Plugs for Unified/Straight Threads are designed to protect Unified/Straight-threaded ports and fittings from moisture, dust and damage during production, shipping and storage. Five complete threads plus a sealing lip provide a tight fit and secure seal. Can be applied and removed by hand, with a socket wrench, screwdriver or power tool.

Our SPU Series Plugs are:


  • Molded in Red Polypropylene(Standard applications)or
  • Yellow Nylon (offers high resistance against hydraulic fluids, solvents, acids and base alkalines)
  • Sized to fit Unified/Straight Threads from 7/16-20 thru 1-5/8-12.


These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.


MOCAP stocks Sealing Plugs for Unified/Straight Threads in both Red Polypropylene and Yellow Nylon materials in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
