General Purpose Plugs for Unified/Straight Threads

GPU


General Purpose Plastic UNF Plugs
General Purpose Plugs for Unified/Straight Threads

GPU–Media

General Purpose Plugs for Unified/Straight Threads General Purpose Plugs for Unified/Straight Threads Thread Plug Plastic Straight Thread Plugs Plastic Pipe Fitting General Purpose Plastic UNF Plugs Polypropylene Plastic Plug Caps for UNF Threads General Purpose Plastic Bolt for UNF Threads Plastic Plugs for Unified and Straight Threads
  • Material: PP (Polypropylene)
  • Stocked Material: PP (Red)
  • Designed to Provide Positive Seal on SAE Straight-Thread Ports
  • Features a Molded-In O-Ring Style Bead and External Lip on the Flange to Seal Out Contaminants

Size Chart Thread Plug

GPU Size Chart

Table View
List View
Part # Description To Fit STD Thread Length
in
mm
 Stem Height
in
mm
 Flange OD
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
GPU0437-20 General Purpose Plugs for Unified/Straight Threads - GEN PURPOSE PLUG FOR 7/16-20 STR THRDS 7/16 - 20
0.340
8.6
0.210
5.3
0.660
16.8
 8000 1600 160
GPU0437-24 Plastic Plugs for Unified and Straight Threads - GEN PURPOSE PLUG FOR 7/16-24 STR THRDS 7/16 - 24
0.340
8.6
0.210
5.3
0.660
16.8
 8000 1600 160
GPU0500-20 General Purpose Plastic Bolt for UNF Threads - GEN PURPOSE PLUG FOR 1/2-20 STR THRDS 1/2 - 20
0.340
8.6
0.250
6.4
0.730
18.5
 6000 1200 120
GPU0562-18 Polypropylene Plastic Plug Caps for UNF Threads - GEN PURPOSE PLUG FOR 9/16-18 STR THRDS 9/16 - 18
0.360
9.1
0.250
6.4
0.800
20.3
 6000 1200 120
GPU0625-18 General Purpose Plastic UNF Plugs - GEN PURPOSE PLUG FOR 5/8-18 STR THRDS 5/8 - 18
0.360
9.1
0.250
6.4
0.870
22.1
 5000 1000 100
GPU0750-16 Plastic Pipe Fitting - GEN PURPOSE PLUG FOR 3/4-16 STR THRDS 3/4 - 16
0.410
10.4
0.250
6.4
1.020
25.9
 3000 600 60
GPU0875-14 Plastic Straight Thread Plugs - GEN PURPOSE PLUG FOR 7/8-14 STR THRDS 7/8 - 14
0.530
13.5
0.250
6.4
1.160
29.5
 2000 400 40
GPU1000-14 Thread Plug - GEN PURPOSE PLUG FOR 1-14 STR THRDS 1 - 14
0.530
13.5
0.250
6.4
1.380
35.1
 1500 300 30
GPU1062-12 General Purpose Plugs for Unified/Straight Threads - GEN PURPOSE PLUG FOR 1-1/16-12 STR THRDS 1-1/16 - 12
0.610
15.5
0.250
6.4
1.450
36.8
 1000 200 20
GPU1187-12 General Purpose Plugs for Unified/Straight Threads - GEN PURPOSE PLUG FOR 1 3/16-12 STR THRDS 1-3/16 - 12
0.610
15.5
0.250
6.4
1.600
40.6
 1000 200 20
GPU1313-12 Plastic Plugs for Unified and Straight Threads - GEN PURPOSE PLUG FOR 1-5/16-12 STR THRDS 1-5/16 - 12
0.610
15.5
0.250
6.4
1.740
44.2
 1000 200 20
GPU1625-12 General Purpose Plastic Bolt for UNF Threads - GEN PURPOSE PLUG FOR 1-5/8-12 STR THRDS 1-5/8 - 12
0.610
15.5
0.250
6.4
2.170
55.1
 700 140 14
GPU1875-12 Polypropylene Plastic Plug Caps for UNF Threads - GEN PURPOSE PLUG FOR 1 7/8-12 STR THRDS 1-7/8 - 12
0.610
15.5
0.250
6.4
2.440
62.0
 600 120 12
Part # Description To Fit STD Thread Length
in
mm
 Stem Height
in
mm
 Flange OD
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



General Purpose Plugs for Unified/Straight Threads - Information

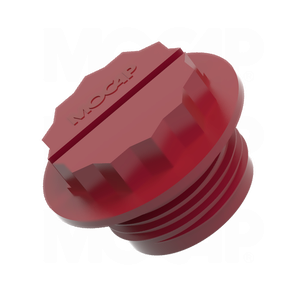

MOCAP General Purpose Plugs are designed for use on Unified/Straight threads and fittings. These Threaded Plastic Plugs are slotted, and feature a 12-point head for screwdriver, socket or wrench tightening.
Designed to provide a positive seal on SAE straight-threaded ports. Molded-in O-Ring style bead seats into the bevel of the threaded opening to prevent fluid or oil leakage. When tightened, an external lip on the flange compresses against the surface to keep contaminants and debris from the part face.

Our GPU Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug threads from 1/8 thru 1/2.

MOCAP stocks General Purpose Plugs for Unified/Straight Threads in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
