Paper Tapered Caps

MPTC

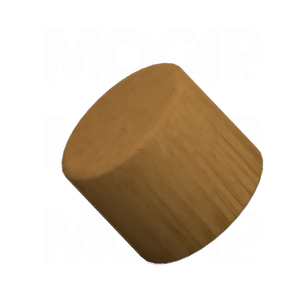

Inexpensive Paper End Caps
Paper Tapered Caps

MPTC–Media

Paper Tapered Caps Tapered Paper Masking Products Environmentally friendly tapered paper caps Paper Tapered Masking Cap Paper Tapered Caps Inexpensive Paper End Caps High-Temperature Paper Tapered End Cap Tapered Paper Cap Tapered Paper End Caps
  • Material: Paper
  • Environmentally Friendly and Economical Masking Solution
  • Does Not Promote Condensation

Size Chart Environmentally friendly tapered paper caps

MPTC Size Chart

Table View
List View
Part # Description To Fit MALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small I.D.
in
mm
 Large I.D.
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
MPTC002 Paper Tapered Caps - TAPERED CAP, PAPER - TAN 1/8 3/8 M10 G1/8
0.354
9.0
0.398
10.1
0.398
10.1
 25000 1000 100
MPTC003 Tapered Paper End Caps - TAPERED CAP, PAPER - TAN 1/4 1/2, 9/16, 5/8 M14 M15
0.469
11.9
0.488
12.4
0.532
13.5
 12000 1000 100
MPTC004 Tapered Paper Cap - TAPERED CAP, PAPER - TAN 1/2, 9/16, 5/8 M14 M15 G1/4, G3/8
0.484
12.3
0.748
19.0
0.882
22.4
 5800 1000 100
MPTC006 High-Temperature Paper Tapered End Cap - TAPERED CAP, PAPER - TAN 3/8 3/4 M18 G3/8
0.650
16.5
0.650
16.5
0.516
13.1
 16000 1000 100
MPTC007 Inexpensive Paper End Caps - TAPERED CAP, PAPER - TAN 1/2 13/16, 7/8 M20 G1/2
0.776
19.7
0.835
21.2
0.768
19.5
 7000 1000 100
MPTC008 Paper Tapered Caps - TAPERED CAP, PAPER - TAN 15/16, 1 M22 M24 G5/8
0.811
20.6
0.953
24.2
0.835
21.2
 5500 1000 100
MPTC009 Paper Tapered Masking Cap - TAPERED CAP, PAPER - TAN 1 M25 M26 G5/8, G3/4
0.866
22.0
1.047
26.6
0.657
16.7
 6200 1000 100
MPTC010 Environmentally friendly tapered paper caps - TAPERED CAP, PAPER - TAN 3/4 1, 1-1/16 M25 M26 M27 G3/4
0.949
24.1
1.075
27.3
0.886
22.5
 4000 800 80
MPTC011 Tapered Paper Masking Products - TAPERED CAP, PAPER - TAN 1-3/16, 1-1/4 M30 M32 G7/8
1.126
28.6
1.299
33.0
0.717
18.2
 3500 700 70
MPTC012 Paper Tapered Caps - TAPERED CAP, PAPER - TAN 1 M32 G1
1.268
32.2
1.260
32.0
0.996
25.3
 3300 660 66
MPTC013 Tapered Paper End Caps - TAPERED CAP, PAPER - TAN 1-7/16, 1-1/2 M35 M36 M38
1.311
33.3
1.520
38.6
0.701
17.8
 3200 640 64
MPTC014 Tapered Paper Cap - TAPERED CAP, PAPER - TAN 1-1/2 M38 M39 M40
1.445
36.7
1.622
41.2
0.811
20.6
 3000 600 60
MPTC015 High-Temperature Paper Tapered End Cap - TAPERED CAP, PAPER - TAN 1-1/4 M42 G1-1/4
1.614
41.0
1.685
42.8
0.846
21.5
 2700 540 54
MPTC016 Inexpensive Paper End Caps - TAPERED CAP, PAPER - TAN 1-3/4, 1-13/16, 1-15/16, 2 M45 M48 M50
1.673
42.5
2.012
51.1
0.720
18.3
 2500 500 50
MPTC017 Paper Tapered Caps - TAPERED CAP, PAPER - TAN 1-1/2 1-7/8 M48 G1-1/2
1.827
46.4
1.890
48.0
0.941
23.9
 1800 360 36
MPTC018 Paper Tapered Masking Cap - TAPERED CAP, PAPER - TAN 2 M60 G2
2.327
59.1
2.343
59.5
0.866
22.0
 1400 280 28
MPTC019 Environmentally friendly tapered paper caps - TAPERED CAP, PAPER - TAN 2-5/8, 2-3/4 M68 M70 M72
2.587
65.7
2.846
72.3
0.980
24.9
 1000 200 20
MPTC020 Tapered Paper Masking Products - TAPERED CAP, PAPER - TAN 2-1/2 M72
2.827
71.8
2.846
72.3
0.969
24.6
 800 160 16
MPTC021 Paper Tapered Caps - TAPERED CAP, PAPER - TAN 3 3-3/8, 3-1/2 M85 M90
3.315
84.2
3.630
92.2
1.114
28.3
 500 100 10
Part # Description To Fit MALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small I.D.
in
mm
 Large I.D.
in
mm
 Inside Length
in
mm
 Box/Mini/Micro
QTY		 Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.

NOTE:
  • Part dimensions are typical from a measured lot. Individual pieces may vary.
  • Due to the material, this product may have minor dimensional variation due to changes in relative humidity.
  • Flange concentricity may vary.
  • Due to paper's natural structure, the product may be oblong in free state. This will generally aid in the product's retention capability.

MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Paper Tapered Caps - Information

MOCAP Paper Tapered Caps are an environmentally friendly and economical masking solution. Made of recyclable paper, these tapered paper caps do not promote condensation. These closures will withstand up to 400°F(204°C), making them ideal for low-to-high temperature applications.

Note: Due to the material, these Tapered Paper Caps may have minor dimensional variation due to changes in relative humidity.
Our MPTC Series Caps are manufactured in tan paper and sized to fit 1/8 thru 3 inch male NPT pipes

MOCAP stocks Paper Tapered Caps in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
