Threaded Plastic Plugs for Inverted Flared Fittings

IFP


Threaded Plastic Plugs for boss-type fittings
Threaded Plastic Plugs for Inverted Flared Fittings

IFP–Media

Threaded Plastic Plugs for Inverted Flared Fittings Inverted Flare Plug Fittings Male inverted flare Fitting Attachment Inverted Flare Fittings Plastic Inverted Flared Fittings Threaded Plastic Plugs for boss-type fittings Threaded Plug Caps for Inverted Flared Fittings Plastic Bolt for Inverted Flared Threaded Fittings Inverted Flare Tube Fittings (Polyethylene Plastic)
  • Material: LDPE (Low Density Polyethylene)
  • Stocked Material: LDPE (Red)
  • Knurled Grip for Easy On-Off Application and Can be Used to Seal Boss-Type Fittings without Gaskets

Size Chart Male inverted flare Fitting Attachment

IFP Size Chart

Table View
List View
Part # Description To Fit STD Thread Length
in
mm
Flange OD
in
mm
Flange Thickness
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
IFP300 Threaded Plastic Plugs for Inverted Flared Fittings - PLUG FOR 5/16-28 INVERTED FLARED FITTING 5/16 - 28
0.220
5.6
0.440
11.2
0.190
4.8
5000 1000 100
IFP310 Inverted Flare Tube Fittings (Polyethylene Plastic) - PLUG FOR 3/8-24 INVERTED FLARED FITTING 3/8 - 24
0.250
6.4
0.500
12.7
0.190
4.8
4000 800 80
IFP320 Plastic Bolt for Inverted Flared Threaded Fittings - PLUG FOR 7/16-24 INVERTED FLARED FITTING 7/16 - 24
0.270
6.9
0.630
16.0
0.190
4.8
5000 1000 100
IFP330 Threaded Plug Caps for Inverted Flared Fittings - PLUG FOR 1/2-20 INVERTED FLARED FITTING 1/2 - 20
0.280
7.1
0.690
17.5
0.250
6.4
5000 1000 100
IFP340 Threaded Plastic Plugs for boss-type fittings - PLUG FOR 5/8-18 INVERTED FLARED FITTING 5/8 - 18
0.310
7.9
0.810
20.6
0.250
6.4
3000 600 60
IFP350 Plastic Inverted Flared Fittings - PLUG FOR 5/8-18 INVERTED FLARED FITTING LONG 5/8 - 18
0.500
12.7
0.810
20.6
0.250
6.4
3000 600 60
IFP360 Inverted Flare Fittings - PLUG FOR 11/16-18 INVERTED FLARED FITTING 11/16 - 18
0.310
7.9
0.870
22.1
0.250
6.4
3000 600 60
IFP370 Male inverted flare Fitting Attachment - PLUG FOR 3/4-18 INVERTED FLARED FITTING 3/4 - 18
0.380
9.7
0.870
22.1
0.250
6.4
5000 1000 100
IFP380 Inverted Flare Plug Fittings - PLUG FOR 1-1/16-16 INVERTED FLARED FITTING 1-1/16 - 16
0.430
10.9
1.190
30.2
0.250
6.4
1500 300 30
Part # Description To Fit STD Thread Length
in
mm
Flange OD
in
mm
Flange Thickness
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Threaded Plastic Plugs for Inverted Flared Fittings - Information

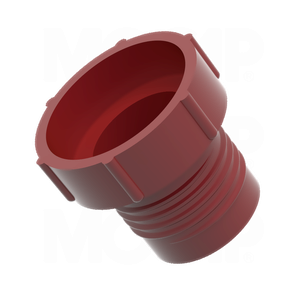

MOCAP Threaded Plastic Plugs are designed for use on Inverted Flared fittings. These Threaded Plastic Plugs are knurled for easy use in manual assembly and removal. They can also be used to seal boss-type fittings without gaskets.
Protects threaded fittings from moisture, dust and damage during production, shipping and storage.
Our IFP Series Threaded Plugs are molded in Red polyethylene plastic and sized to fit Inverted Flared Fittings from 5/16-28 thru 1-1/16-16.

MOCAP stocks Threaded Plastic Plugs for Inverted Flared Fittings in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.
