Center Pull Plugs with Wide Flanges

CPW


Plastic Center Pull Plugs

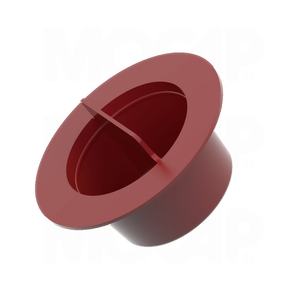

MOCAP Plastic Center Pull Plugs  with Wide Brim
  • Material: Low-Density Polyethylene (RED)
  • Center Pull Tab Allows for Quick and Easy Removal
  • Extra Strong Tab is Molded into Plug so it Will Not Break Off
  • Featuring a Wider Flange than the CP Series for Added Protection of External Surfaces

CPW – Media

Center Pull Plugs with Wide Flanges Plastic Center Pull Plugs  with Wide Brim Wide Flange Center Pull Tab Plugs Plastic Center Pull Plugs Center Pull Plugs with Wide Flanges Center Pull Plugs with Wide Flanges Tapered Center Pull Plugs MOCAP manufactures and supplies Center Pull Plugs with Wide Flanges for product protection. Our CPW Series of Tapered Center Pull Plugs come in a variety of sizes and are available for immediate shipment. To place an order, call MOCAP Canada at 800.633.6775.

Size Chart Plastic Component Protection

PrintPrint

CPW Size Chart

Default Part # Description Product Line Small O.D.
in
mm
Large O.D.
in
mm
Flange OD
in
mm
Length
in
mm
Tab Height
in
mm
Tab Width
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Default Part # Description Product Line Small O.D.
in
mm
Large O.D.
in
mm
Flange OD
in
mm
Length
in
mm
Tab Height
in
mm
Tab Width
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
1 CPW.48/.54RD1 Center Pull Plugs with Wide Flanges - CENTER PULL WIDE FLANGE LDPE RED CPW
0.480
12.2
0.540
13.7
1.250
31.8
0.530
13.5
0.250
6.4
0.375
9.5
5000 1000 100
2 CPW.59/.65RD1 Tapered Center Pull Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
0.590
15.0
0.647
16.4
1.060
26.9
0.500
12.7
0.250
6.4
0.375
9.5
5000 1000 100
3 CPW.73/.79RD1 Plastic Center Pull Plugs with Wide Brim - CENTER PULL WIDE FLANGE LDPE RED CPW
0.730
18.5
0.790
20.1
1.500
38.1
0.500
12.7
0.250
6.4
0.625
15.9
3000 600 60
4 CPW.75/.85RD1 Wide Flange Center Pull Tab Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
0.752
19.1
0.849
21.6
1.310
33.3
0.500
12.7
0.250
6.4
0.625
15.9
2500 500 50
5 CPW.92/1.08RD1 Plastic Center Pull Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
0.921
23.4
1.075
27.3
1.620
41.1
0.750
19.1
0.250
6.4
0.625
15.9
1500 300 30
6 CPW.98/1.04RD1 Center Pull Plugs with Wide Flanges - CENTER PULL WIDE FLANGE LDPE RED CPW
0.980
24.9
1.040
26.4
1.880
47.8
0.530
13.5
0.250
6.4
0.625
15.9
1500 300 30
7 CPW1.07/1.19RD1 Plastic Pull Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
1.069
27.2
1.188
30.2
1.730
43.9
0.690
17.5
0.250
6.4
1.000
25.4
1000 200 20
8 CPW1.20/1.30RD1 Plastic Component Protection - CENTER PULL WIDE FLANGE LDPE RED CPW
1.202
30.5
1.297
32.9
1.880
47.8
0.750
19.1
0.250
6.4
1.000
25.4
1000 200 20
9 CPW1.23/1.29RD1 Center Pull Plug with Wide Flange - CENTER PULL WIDE FLANGE LDPE RED CPW
1.230
31.2
1.290
32.8
2.000
50.8
0.500
12.7
0.250
6.4
1.000
25.4
1200 240 24
10 CPW1.46/1.55RD1 Center Pull Plugs with Wide Flanges - CENTER PULL WIDE FLANGE LDPE RED CPW
1.460
37.1
1.550
39.4
2.380
60.5
0.750
19.1
0.250
6.4
1.000
25.4
500 100 10
11 CPW1.52/1.60RD1 Tapered Center Pull Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
1.519
38.6
1.602
40.7
2.250
57.2
0.750
19.1
0.250
6.4
1.000
25.4
500 100 10
12 CPW1.81/1.93RD1 Plastic Center Pull Plugs with Wide Brim - CENTER PULL WIDE FLANGE LDPE RED CPW
1.807
45.9
1.932
49.1
2.530
64.3
0.750
19.1
0.250
6.4
1.000
25.4
500 100 10
13 CPW1.96/2.05RD1 Wide Flange Center Pull Tab Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
1.960
49.8
2.050
52.1
2.750
69.9
0.750
19.1
0.250
6.4
1.000
25.4
500 100 10
14 CPW2.46/2.55RD1 Plastic Center Pull Plugs - CENTER PULL WIDE FLANGE LDPE RED CPW
2.460
62.5
2.550
64.8
3.250
82.6
0.750
19.1
0.250
6.4
1.000
25.4
250 50 5
Legend:
- Add to Cart - View Price - Request Samples / More Info

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Center Pull Plugs with Wide Flanges - Information

MOCAP Center Pull Tapered Plastic Plugs with Wide Flanges are similar to our Center Pull Plugs, but have a wider flange designed to protect greater surface area. An extra strong tab is molded into the bottom and sides of this plastic plug and extends well above the plug flange making it easy to grasp and remove.
  • Center Pull Tab for Easy Removal
  • Tapered Plastic Plug fits Multiple Size Openings

MOCAP stocks Center Pull Plugs with Wide Flanges in many sizes for immediate shipment.
MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.





RoHS


Diagram
