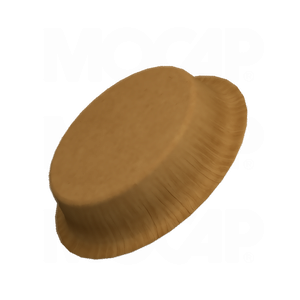

Paper Tapered Plugs

MPTP


Inexpensive Paper Stoppers
MOCAP Tapered Paper Plug Cap
  • Material: Paper (Brown)
  • Withstands Up to 400°F (204°C) - Ideal for Low-To-High Temp Apps
  • Environmentally Friendly and Economical Masking Solution
  • Does Not Promote Condensation

MPTP – Media

Paper Tapered Plugs Tapered Paper Plug Cap High-Temperature Paper Tapered End Plug Inexpensive Paper Stoppers Paper Tapered Plugs Paper Tapered Plugs Tapered Paper Plug Tapered Paper Plug

Size Chart Tapered Paper Masking Products

PrintPrint

MPTP Size Chart

Default Part # Description Product Line To Fit FEMALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Default Part # Description Product Line To Fit FEMALE NPT To Fit STD Thread To Fit METRIC Thread To Fit BSP Small O.D.
in
mm
Large O.D.
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
1 MPTP002 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN MPTP 1/8 7/16 M10, M11
0.354
9.0
0.413
10.5
0.343
8.7
0.563
14.3
30000 1000 100
2 MPTP004 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN MPTP 1/2 M11, M12 G1/4
0.370
9.4
0.469
11.9
0.358
9.1
0.630
16.0
22000 1000 100
3 MPTP006 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN MPTP 1/4 9/16 M14 G1/4
0.461
11.7
0.504
12.8
0.362
9.2
0.685
17.4
18000 1000 100
4 MPTP008 High-Temperature Paper Tapered End Plug - TAPERED PLUG, PAPER -TAN MPTP 5/8 M14, M15
0.469
11.9
0.575
14.6
0.417
10.6
0.760
19.3
13500 1000 100
5 MPTP009 Inexpensive Paper Stoppers - TAPERED PLUG, PAPER -TAN MPTP 3/8 11/16 M16, M17 G3/8
0.520
13.2
0.634
16.1
0.421
10.7
0.870
22.1
9000 1000 100
6 MPTP011 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN MPTP 3/8 M16, M17, M18 G3/8
0.579
14.7
0.697
17.7
0.480
12.2
0.866
22.0
16000 1000 100
7 MPTP012 Environmentally friendly tapered paper plugs - TAPERED PLUG, PAPER -TAN MPTP 3/4, 13/16 M18, M20 G1/2
0.650
16.5
0.776
19.7
0.453
11.5
1.004
25.5
13000 1000 100
8 MPTP014 Tapered Paper Masking Products - TAPERED PLUG, PAPER -TAN MPTP 1/2 M20, M22 G1/2
0.677
17.2
0.819
20.8
0.532
13.5
1.035
26.3
10500 1000 100
9 MPTP016 Paper Tapered Masking Plug - TAPERED PLUG, PAPER -TAN MPTP 7/8, 15/16 M22, M24 G5/8
0.780
19.8
0.878
22.3
0.583
14.8
1.181
30.0
7200 1000 100
10 MPTP017 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN MPTP 3/4 15/16, 1 M24, M25, M26, M27 G3/4
0.858
21.8
0.949
24.1
0.689
17.5
1.295
32.9
5000 1000 100
11 MPTP019 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN MPTP 3/4 1, 1-1/16 M25, M26, M27, M28, M30 G3/4
0.917
23.3
1.114
28.3
0.543
13.8
1.378
35.0
6200 1000 100
12 MPTP020 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN MPTP 1 1-1/8, 1-3/16, 1-1/4 M27, M28, M30, M33 G7/8, G1
1.000
25.4
1.236
31.4
0.760
19.3
1.528
38.8
3500 1000 100
13 MPTP022 High-Temperature Paper Tapered End Plug - TAPERED PLUG, PAPER -TAN MPTP 1 1-5/16, 1-3/8, 1-7/16, 1-1/2 M33, M35, M36 G1
1.173
29.8
1.437
36.5
0.634
16.1
1.732
44.0
5000 1000 100
14 MPTP023 Inexpensive Paper Stoppers - TAPERED PLUG, PAPER -TAN MPTP 1-1/2, 1-9/16, 1-5/8 M36, M38, M39, M40, M42 G1-1/4
1.362
34.6
1.602
40.7
0.575
14.6
1.882
47.8
4700 940 94
15 MPTP027 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN MPTP 1-1/4 1-11/16, 1-3/4, 1-13/16, 1-7/8 M42, M45, M48 G1-1/4, G1-1/2
1.496
38.0
1.776
45.1
0.689
17.5
2.118
53.8
3000 600 60
16 MPTP029 Environmentally friendly tapered paper plugs - TAPERED PLUG, PAPER -TAN MPTP 1-1/2 1-13/16, 1-7/8, 1-15/16, 2 M48, M50 G1-1/2, G1-3/4
1.724
43.8
2.063
52.4
0.677
17.2
2.429
61.7
2700 540 54
17 MPTP030 Tapered Paper Masking Products - TAPERED PLUG, PAPER -TAN MPTP 2-1/8, 2-1/4 M52, M55, M56 G1-3/4
1.874
47.6
2.209
56.1
0.701
17.8
2.701
68.6
2200 440 44
18 MPTP031 Paper Tapered Masking Plug - TAPERED PLUG, PAPER -TAN MPTP 2-1/4, 2-3/8 M56, M58, M60 G1-3/4 G2
1.976
50.2
2.299
58.4
1.028
26.1
2.921
74.2
1200 240 24
19 MPTP032 Paper Tapered Plugs - TAPERED PLUG, PAPER -TAN MPTP 2 2-3/8, 2-1/2 M60, M62, M63, M64, M65 G2
2.217
56.3
2.500
63.5
0.642
16.3
2.933
74.5
1800 360 36
20 MPTP033 Tapered Paper Plug - TAPERED PLUG, PAPER -TAN MPTP 2-1/2 2-7/8, 3 M72, M75, M76, M78, M80
2.638
67.0
3.146
79.9
0.752
19.1
3.571
90.7
1300 260 26
21 MPTP034 Tapered Paper Plug Cap - TAPERED PLUG, PAPER -TAN MPTP 3 3-1/2 M90
3.276
83.2
3.598
91.4
0.736
18.7
4.091
103.9
1000 200 20
Legend:
- Add to Cart - View Price - Request Samples / More Info

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.

NOTE:
  • Part dimensions are typical from a measured lot. Individual pieces may vary.
  • Due to the material, this product may have minor dimensional variation due to changes in relative humidity.
  • Flange concentricity may vary.
  • Due to paper's natural structure, the product may be oblong in free state. This will generally aid in the product's retention capability.

MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Paper Tapered Plugs - Information

MOCAP Paper Tapered Plugs are an environmentally friendly and economical masking solution. Made of recyclable paper, these tapered paper plugs do not promote condensation. These closures will withstand up to 400° F (204° C), making them ideal for low-to-high temperature applications.
Note: Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.
Our MPTP Series Plugs are manufactured in Tan paper and sized to fit 1/8 thru 3 inch Female NPT's.

MOCAP stocks Paper Tapered Plugs in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.





RoHS


Diagram
Tapered Paper Plug
