Paper Straight Caps

MPSC


Inexpensive Paper Straight Caps

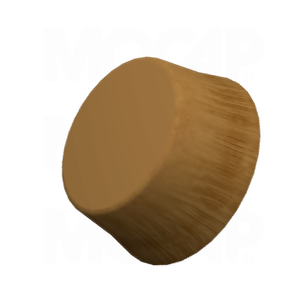

MOCAP Straight Paper Cap
  • Material: Paper (Brown)
  • Withstands Up to 400°F (204°C) - Ideal for Low-To-High Temp Apps
  • Environmentally Friendly and Economical Masking Solution
  • Does Not Promote Condensation

MPSC – Media

Paper Straight Caps Straight Paper Cap High-Temperature Paper Straight End Cap Inexpensive Paper Straight Caps Paper Straight Caps Paper Straight Caps Paper End Caps Paper End Caps

Size Chart Environmentally friendly paper caps

PrintPrint

MPSC Size Chart

Default Part # Description Product Line To Fit MALE NPT To Fit Tube Size To Fit STD Thread To Fit Flared Tube Fitting To Fit METRIC Thread To Fit BSP Inside Diameter
in
mm
Inside Length
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
1 MPSC001 Paper Straight Caps - STRAIGHT CAP, PAPER - TAN MPSC 5/16 1/4, 5/16 1/8 M8, M9 G1/8
0.303
7.7
0.370
9.4
22000 1000 100
2 MPSC003 Paper End Caps - STRAIGHT CAP, PAPER - TAN MPSC 1/8 3/8 3/8, 7/16 3/16 M10,M11 G1/8
0.354
9.0
0.374
9.5
25000 1000 100
3 MPSC004 Straight Paper Cap - STRAIGHT CAP, PAPER - TAN MPSC 1/8 7/16 7/16, 1/2 1/4 M11,M12
0.417
10.6
0.453
11.5
18000 1000 100
4 MPSC005 High-Temperature Paper Straight End Cap - STRAIGHT CAP, PAPER - TAN MPSC 1/4 1/2 1/2, 9/16 5/16 M14,M15 G1/4
0.469
11.9
0.512
13.0
12500 1000 100
5 MPSC006 Inexpensive Paper Straight Caps - STRAIGHT CAP, PAPER - TAN MPSC 3/8 5/8 5/8, 11/16 3/8 M16, M17,M18 G3/8
0.598
15.2
0.528
13.4
8000 1000 100
6 MPSC007 Paper Straight Caps - STRAIGHT CAP, PAPER - TAN MPSC 1/2 3/4 3/4, 13/16 1/2 M20 G1/2
0.717
18.2
0.673
17.1
8500 1000 100
7 MPSC009 Paper Protection Caps - STRAIGHT CAP, PAPER - TAN MPSC 7/8 7/8, 15/16 5/8 M22 G5/8
0.811
20.6
0.823
20.9
5500 1000 100
8 MPSC010 Environmentally friendly paper caps - STRAIGHT CAP, PAPER - TAN MPSC 3/4 1 1, 1-1/16 3/4 M25, M26, M27 G3/4
0.957
24.3
0.862
21.9
4000 800 80
9 MPSC011 Paper Masking Products - STRAIGHT CAP, PAPER - TAN MPSC 1 1 5/16 1-1/4, 1-5/16 1 M32, M33 G1
1.205
30.6
0.996
25.3
3400 680 68
10 MPSC013 Paper Straight Caps - STRAIGHT CAP, PAPER - TAN MPSC 1-1/4 1 5/8 1-9/16, 1-5/8 1-1/4 M40, M42 G1-1/4
1.543
39.2
1.197
30.4
1800 360 36
11 MPSC016 Paper End Caps - STRAIGHT CAP, PAPER - TAN MPSC 1 7/8 1-7/8 1-1/2 M48 G1-1/2
1.827
46.4
0.913
23.2
1800 360 36
Legend:
- Add to Cart - View Price - Request Samples / More Info

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.

NOTE:
  • Part dimensions are typical from a measured lot. Individual pieces may vary.
  • Due to the material, this product may have minor dimensional variation due to changes in relative humidity.
  • Flange concentricity may vary.
  • Due to paper's natural structure, the product may be oblong in free state. This will generally aid in the product's retention capability.

MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



Paper Straight Caps - Information

MOCAP Paper Straight Caps are an environmentally friendly and economical masking solution. Made of recyclable paper, these straight paper caps do not promote condensation. These closures will withstand up to 400° F (204° C), making them ideal for low-to-high temperature applications.

Note: Due to the material, these Straight Paper Caps may have minor dimensional variation due to changes in relative humidity.
Our MPSC Series Caps are manufactured in tan paper and sized to fit 1/8 thru 1-1/2 flared tube fittings or 5/16 thru 1-7/8 tube OD's

MOCAP stocks Paper Straight Caps in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.





RoHS


Diagram
Paper End Caps
