General Purpose Plugs for BSP Threads

GPB


Plastic BSP Plugs with Screwdriver Slot on Cap
General Purpose Plugs for BSP Threads

GPB–Media

General Purpose Plugs for BSP Threads General Purpose Plugs for BSP Threads BSP Thread Plug Plastic BSP Thread Plugs British Standard Pipe Fitting Plastic BSP Plugs with Screwdriver Slot on Cap Plastic Plugs for BSP Threads General Purpose BSP Plastic Plug Caps Plastic  Plugs for BSP Threads General Purpose Plugs for BSP Threads
  • Material: PP (Polypropylene) (Red)
  • Designed to Protect BSP Threads and Fittings from Damage, Dust, Debris and Contaminants
  • Knurled Head and Slot for Easy On-Off Application

Size Chart BSP Thread Plug

GPB Size Chart

Table View
List View
Part # Description To Fit BSP Flange Thickness
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
GPB0125RD4 General Purpose Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 1/8 THRDS, PP RED G1/8
0.200
5.1
0.350
8.9
0.830
21.1
5000 1000 100
GPB0250RD4 Plastic Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 1/4 THRDS, PP RED G1/4
0.200
5.1
0.350
8.9
0.830
21.1
5000 1000 100
GPB0375RD4 General Purpose BSP Plastic Plug Caps - GEN PURPOSE PLUG FOR BSP 3/8 THRDS, PP RED G3/8
0.240
6.1
0.390
9.9
0.910
23.1
5000 1000 100
GPB0500RD4 Plastic Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 1/2 THRDS, PP RED G1/2
0.240
6.1
0.470
11.9
1.100
27.9
3000 600 60
GPB0625RD4 Plastic BSP Plugs with Screwdriver Slot on Cap - GEN PURPOSE PLUG FOR BSP 5/8 THRDS, PP RED G5/8
0.240
6.1
0.470
11.9
1.200
30.5
2500 500 50
GPB0750RD4 British Standard Pipe Fitting - GEN PURPOSE PLUG FOR BSP 3/4 THRDS, PP RED G3/4
0.240
6.1
0.550
14.0
1.350
34.3
2000 400 40
GPB0875RD4 Plastic BSP Thread Plugs - GEN PURPOSE PLUG FOR BSP 7/8 THRDS, PP RED G7/8
0.300
7.6
0.550
14.0
1.500
38.1
1500 300 30
GPB1000RD4 BSP Thread Plug - GEN PURPOSE PLUG FOR BSP 1 THRDS, PP RED G1
0.300
7.6
0.550
14.0
1.600
40.6
1500 300 30
GPB1250RD4 General Purpose Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 1-1/4 THRDS, PP RED G1-1/4
0.300
7.6
0.550
14.0
2.000
50.8
800 160 16
GPB1500RD4 General Purpose Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 1-1/2 THRDS, PP RED G1-1/2
0.350
8.9
0.590
15.0
2.150
54.6
600 120 12
GPB2000RD4 Plastic Plugs for BSP Threads - GEN PURPOSE PLUG FOR BSP 2 THRDS, PP RED G2
0.350
8.9
0.590
15.0
2.610
66.3
400 80 8
GPB3000RD4 General Purpose BSP Plastic Plug Caps - GEN PURPOSE PLUG FOR BSP 3 THRDS, PP RED G3
0.400
10.2
0.750
19.1
3.730
94.7
150 30 3
Part # Description To Fit BSP Flange Thickness
in
mm
Length
in
mm
Flange OD
in
mm
Box/Mini/Micro
QTY
Buy Online
More info
Legend:
- Add to Cart - View Price

Micropacks are only available for purchase through our online store.


Not Quite Sure What You Need? Want to Consider Another Type or a Different Material?
Consult MOCAP's Exclusive Application Advisor for Assistance.
MOCAP vous propose la vente de capuchons de toutes sortes. Ils répondront à vos besoins.

Spécialiste du bouchon en plastique, MOCAP est fabricant de bouchons de protection, MOCAP est fabricant, de bouchons en silicone. Le groupe vous propose l’achat et la vente de bouchons en plastique ainsi que toute une gamme de produits tels que la pastille haute température, le capuchon en vinyle et le ruban autosoudant.



General Purpose Plugs for BSP Threads - Information

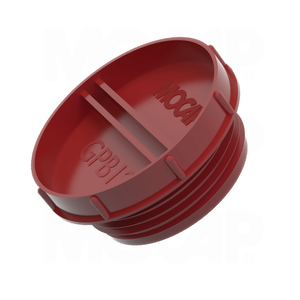

MOCAP General Purpose Plugs are designed for use on British Standard Pipe threads and fittings. These Threaded Plastic Plugs are knurled for ease with manual assembly, but can also be tightened with a screwdriver or hex wrench.
Protects threaded BSP components from moisture, dust and damage during production, shipping and storage, and can also be used as masking during painting and plating. Designed to work in low-pressure testing requirements.
Our GBP Series Threaded Plugs are molded in Red polypropylene plastic and sized to plug BSP threads from 1/8 thru 1/2.

MOCAP stocks General Purpose Plugs for BSP Threads in many sizes for immediate shipment.

MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need. To place an order, click the cart icon on the size chart. Or, to get more information about MOCAP products, call 800.633.6775 or use our Contact Request Form to receive information by e-mail.







RoHS


Diagram
